Project · Warm Roof Upgrade

6 Leydene Road

Our client upgraded all the flat roof areas at 6 Leydene Road to warm roofs, fixing a leaking skylight and areas of pooling water.

Location

Leydene Road

System

Evatherm insulation with Alwitra Evalon VSK single ply

Scope

All flat roof areas upgraded to warm roofs

The Project

Warm Roof Upgrades at Leydene Road

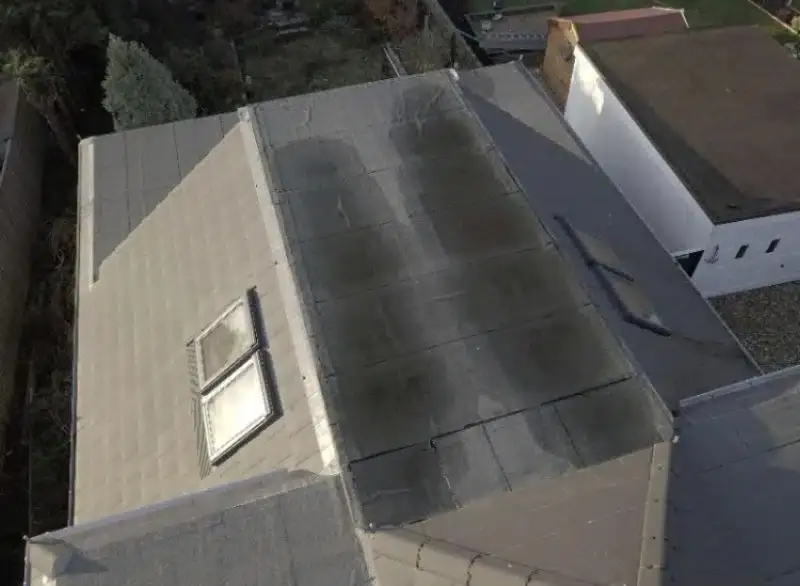

Our client decided to upgrade all the flat roof areas to warm roofs. The old skylight was letting water through and there were several areas of pooling water. We carried out a core sample test to show how much insulation each roof needed to meet the required U-values.

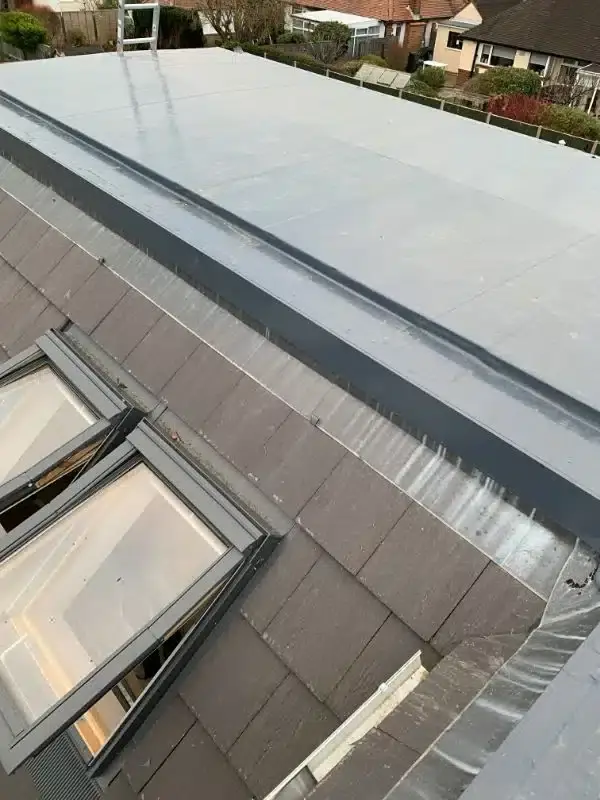

On the top bedroom roof we installed a tapered insulation scheme and drop-down to eradicate the pooling. Evatherm insulation was bonded to the existing felt roofs, with Alwitra Evalon VSK single ply membrane fully adhered to the insulation. On the kitchen extension, we removed the old skylight frame and built a new timber frame correctly, then installed a sky lantern once the membrane was complete. The roofs were finished with matching trims, and we supplied the new sky lantern.

Core sample test to set the insulation needed for the required U-values

Tapered insulation scheme and drop-down on the top bedroom roof

Evatherm insulation bonded to the existing felt, with Alwitra Evalon VSK fully adhered

New timber frame and sky lantern on the kitchen extension
