Project · Single Ply Membrane

Arvensis Perennials, Bradford-on-Avon

A 250m² warm roof outhouse extension, insulated to a 0.11 U-value and finished in Alwitra 1.2mm VSK single ply membrane.

Location

Bradford-on-Avon, BA12 2RU

System

Alwitra 1.2mm VSK single ply

Scope

250m² warm roof outhouse extension

The Project

A 250m² Warm Roof Outhouse Extension

We built a 250m² warm roof on this outhouse extension, with 200mm tissue-faced insulation to achieve a 0.11 U-value.

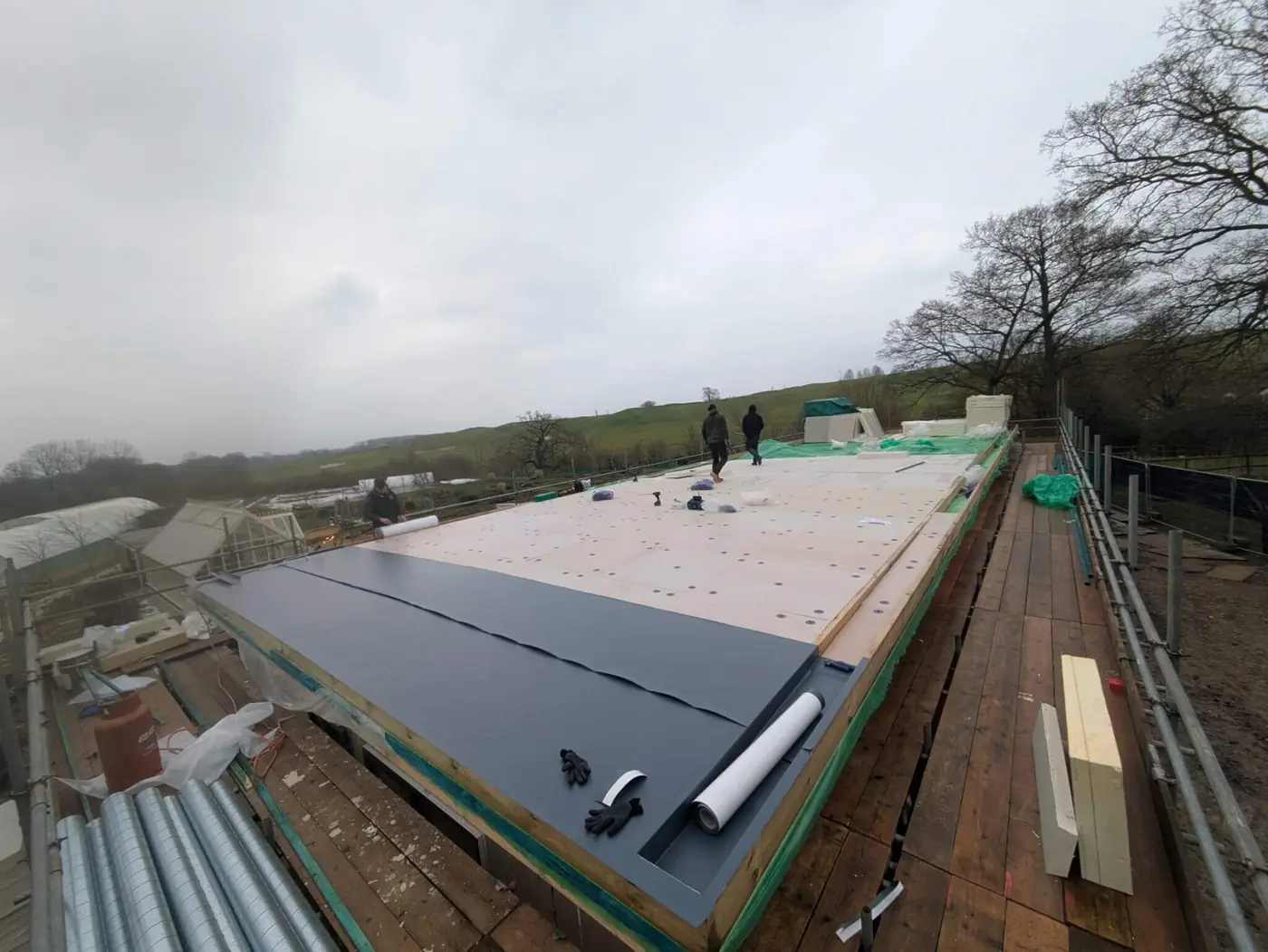

The build-up starts with a Visqueen vapour check VCL to remove the risk of interstitial condensation within the structure. We mechanically fixed 200mm tissue-faced insulation boards to the 18mm plywood substrate using 75mm insulated tubes and carbon fibre fixings, then fully adhered Alwitra 1.2mm VSK single ply membrane to the insulation boards.

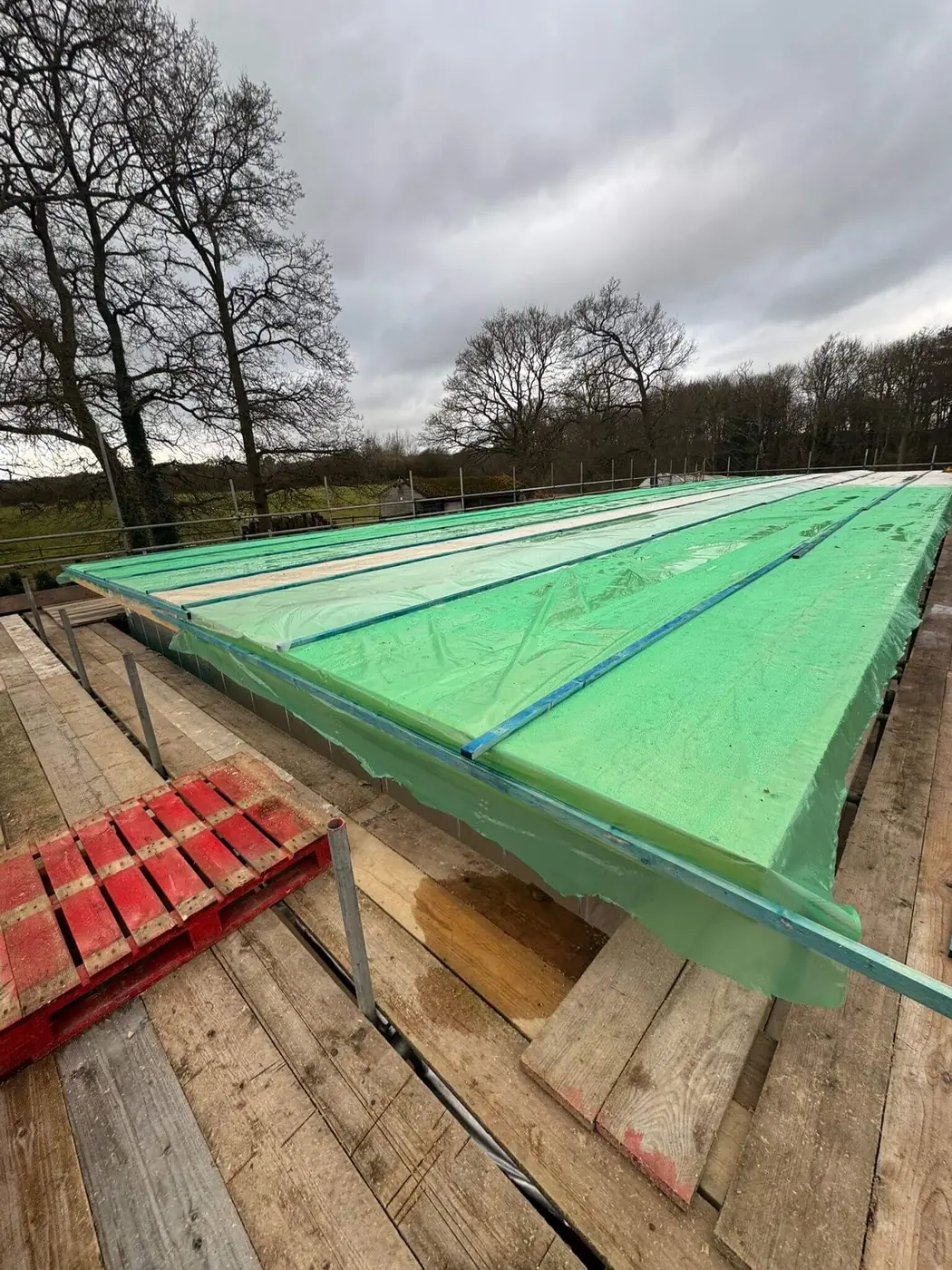

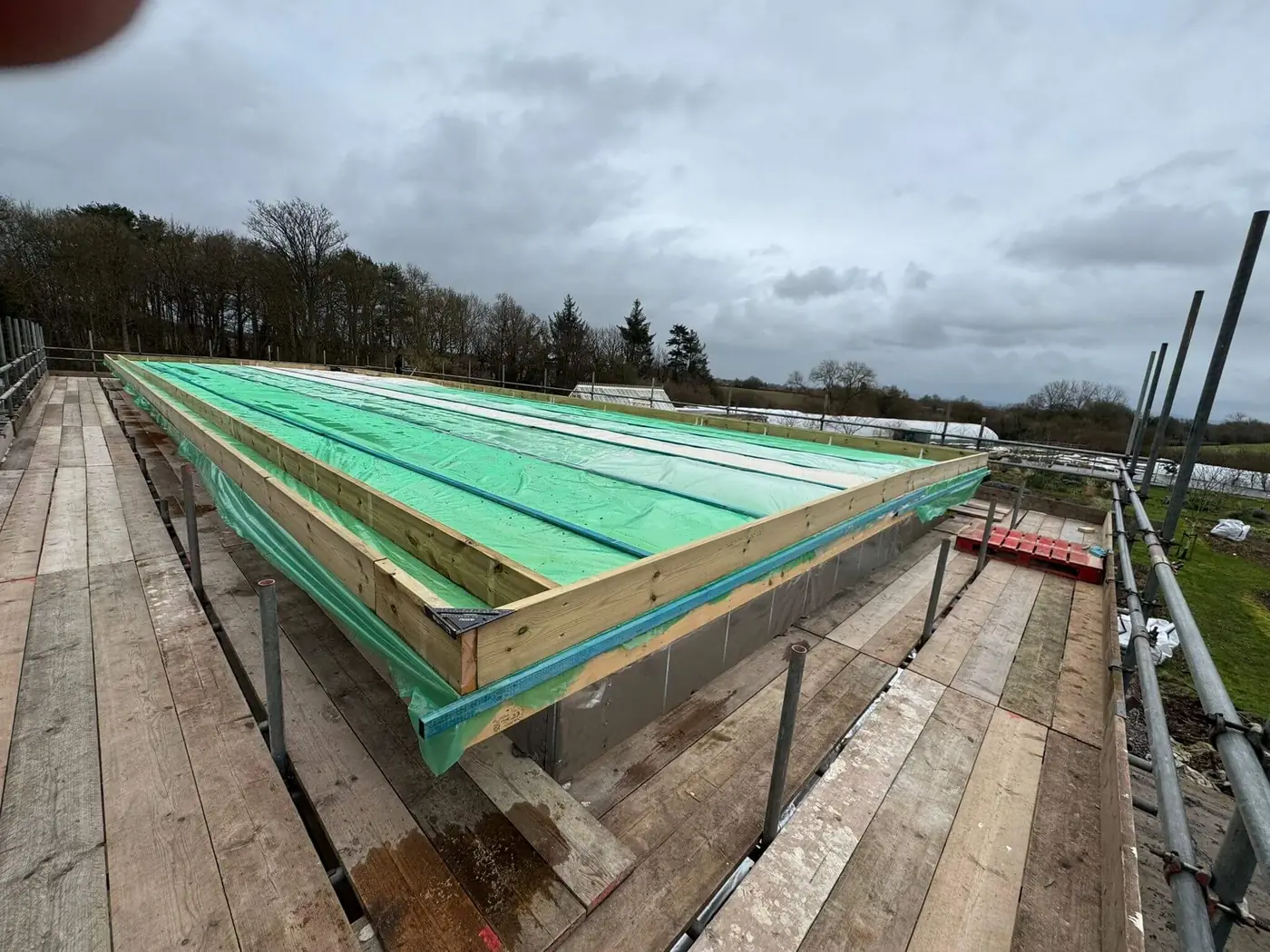

Visqueen vapour check VCL to prevent interstitial condensation

200mm tissue-faced insulation boards for a 0.11 U-value

Insulation mechanically fixed to 18mm plywood with 75mm insulated tubes and carbon fibre fixings

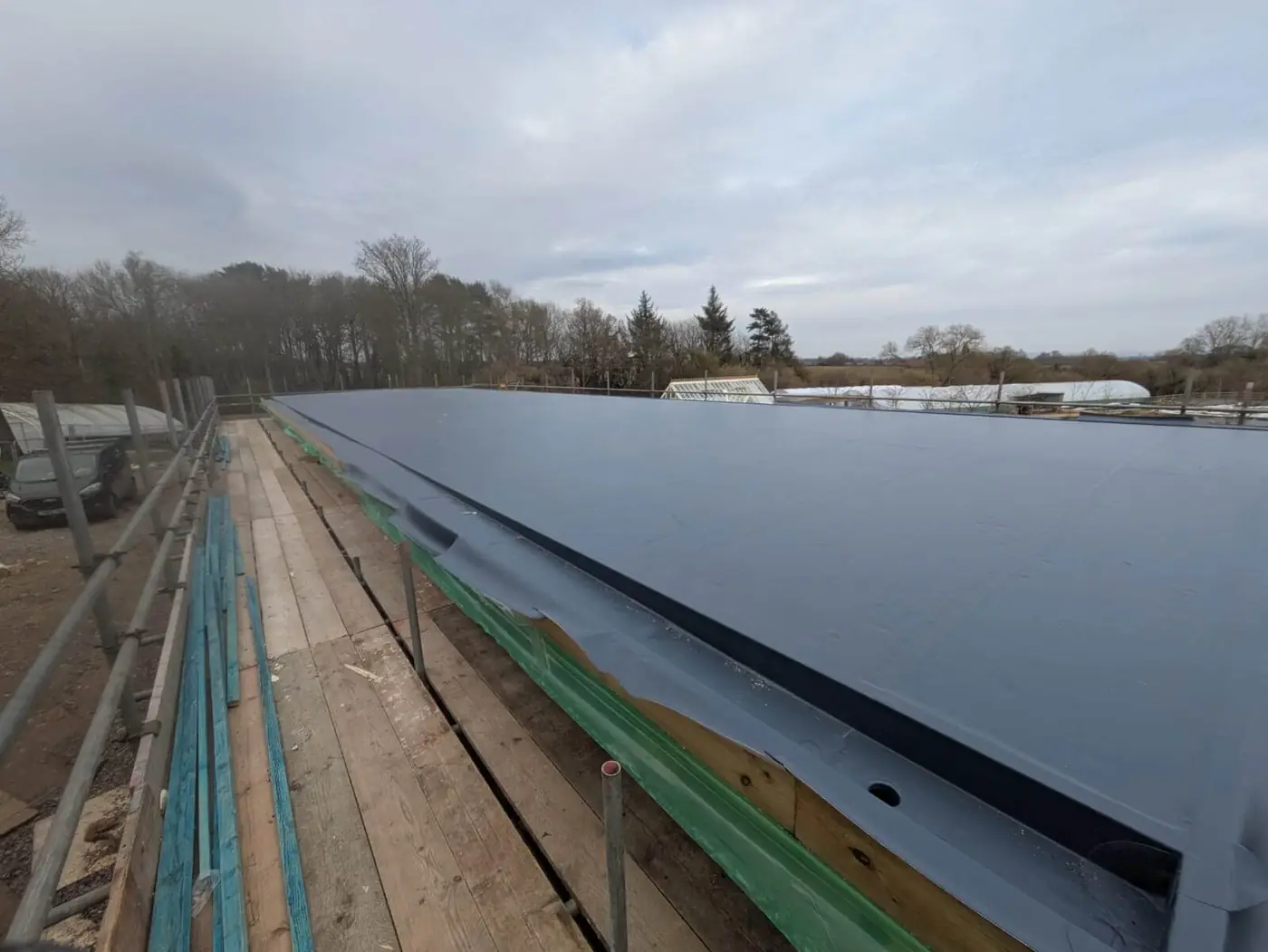

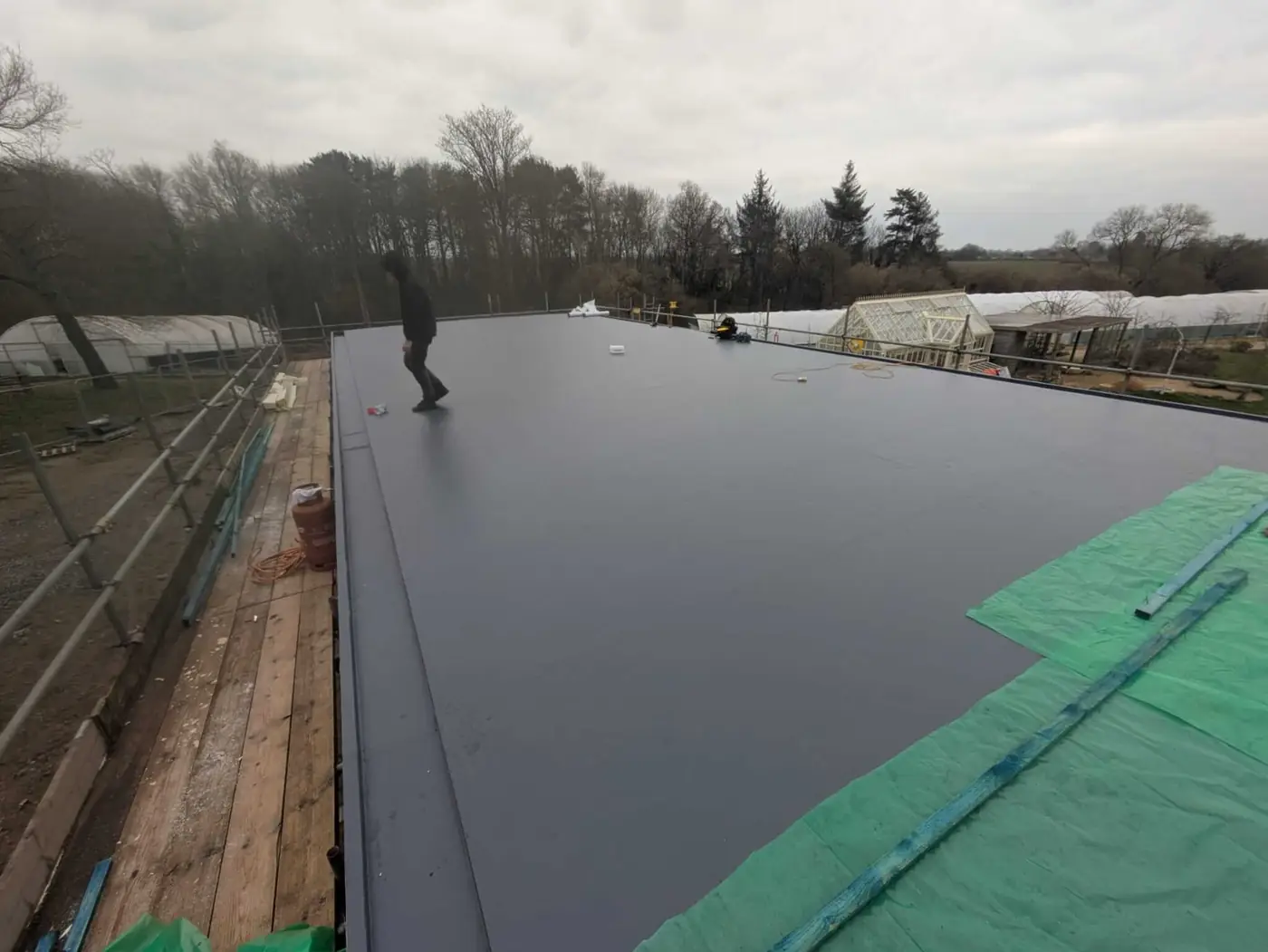

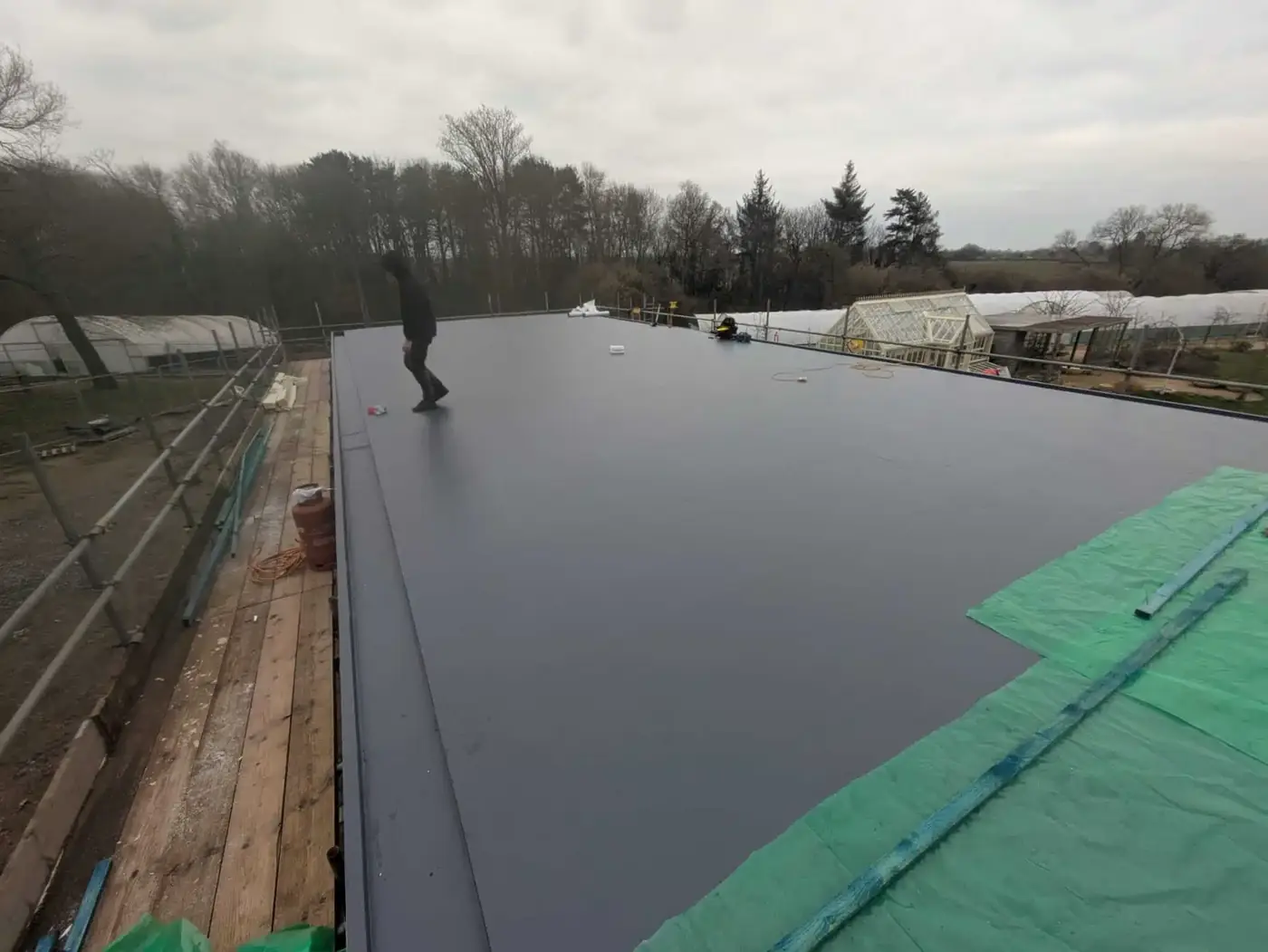

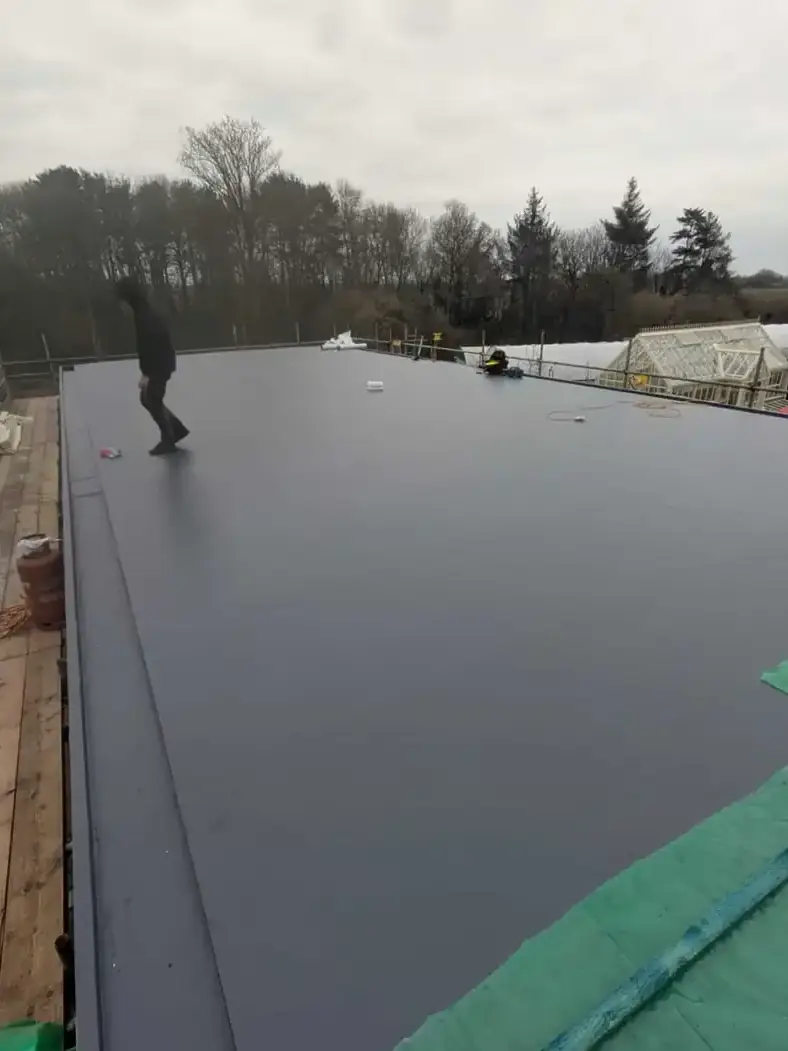

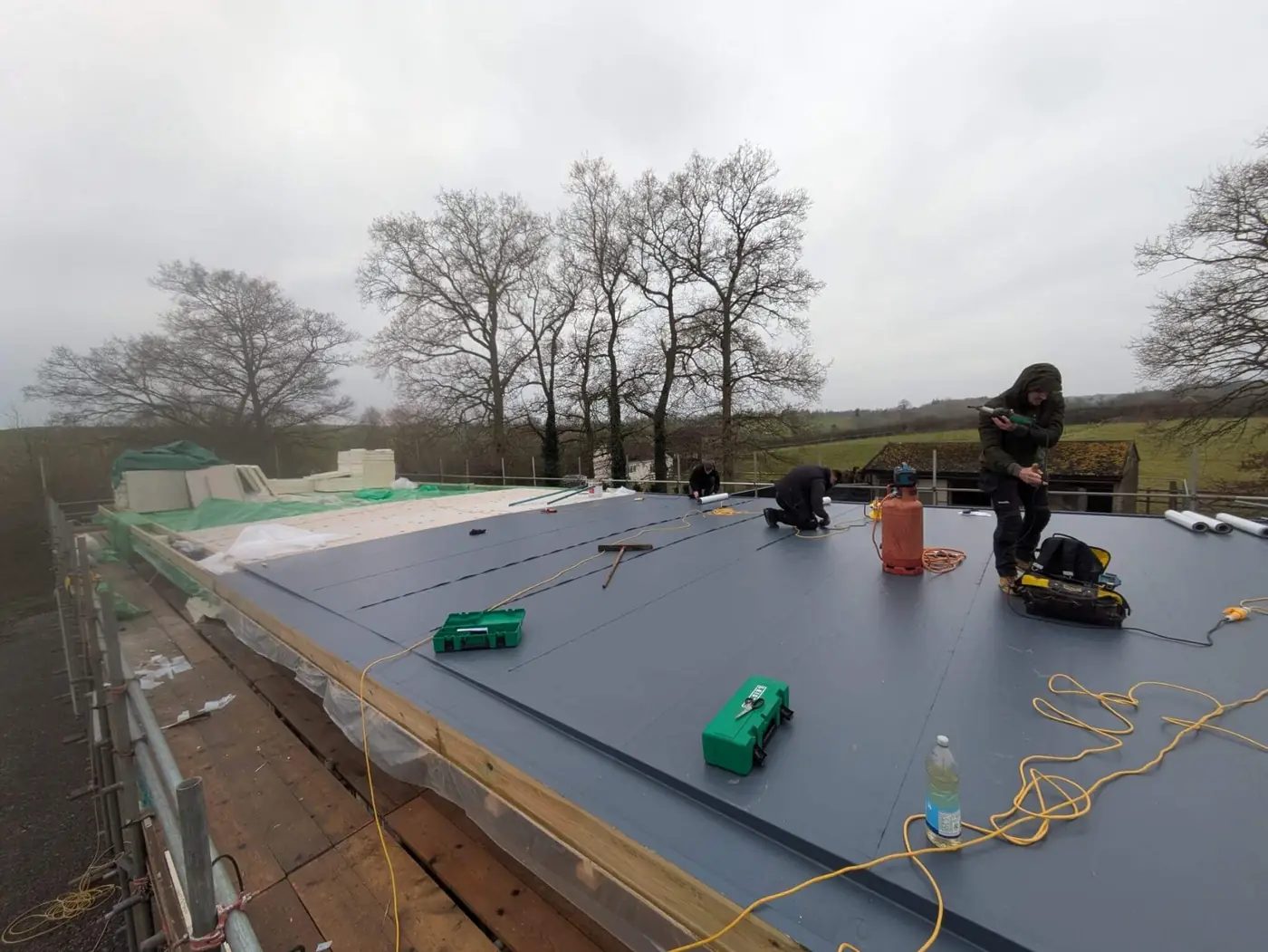

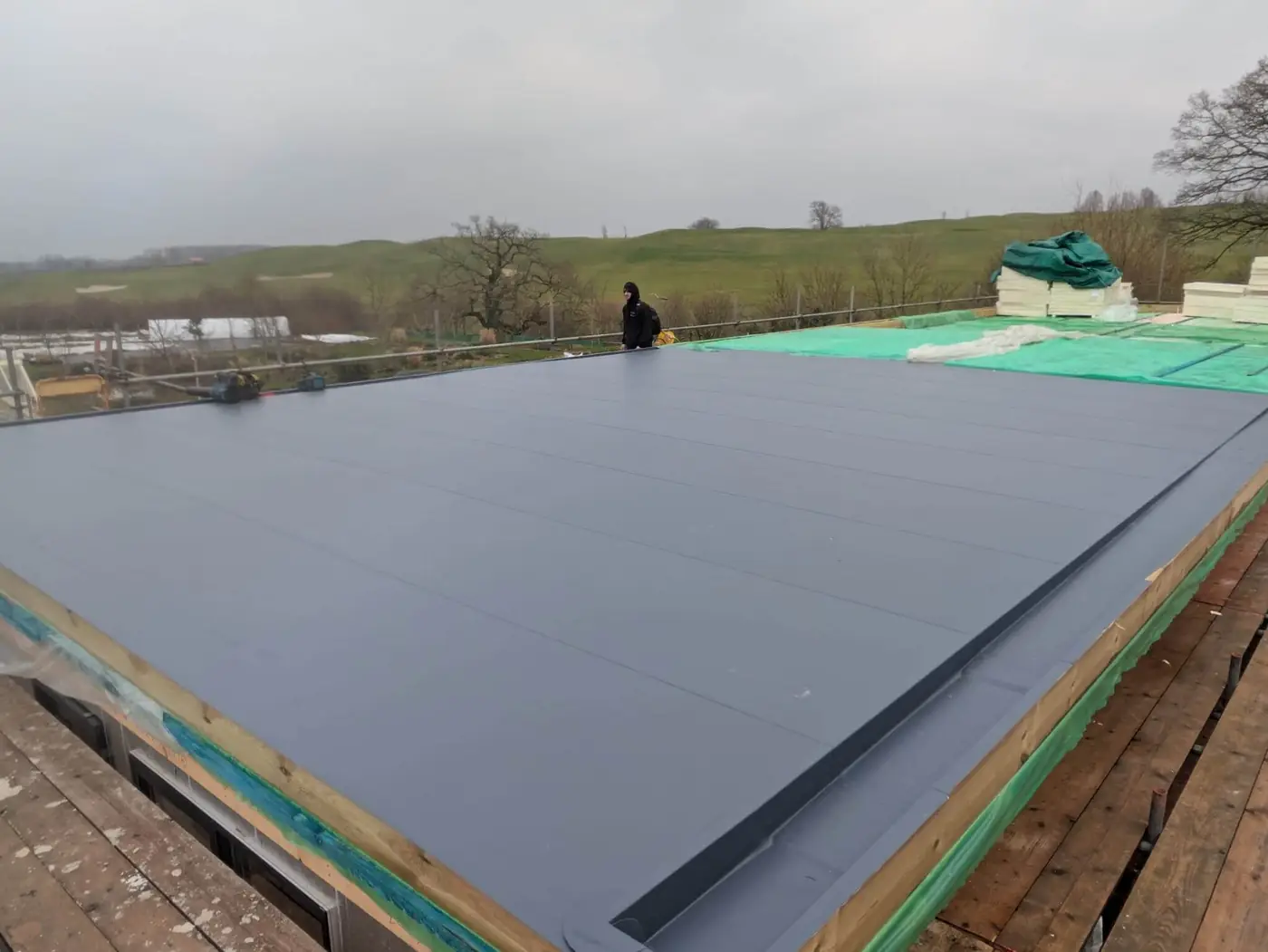

Alwitra 1.2mm VSK single ply membrane, fully adhered to the insulation
